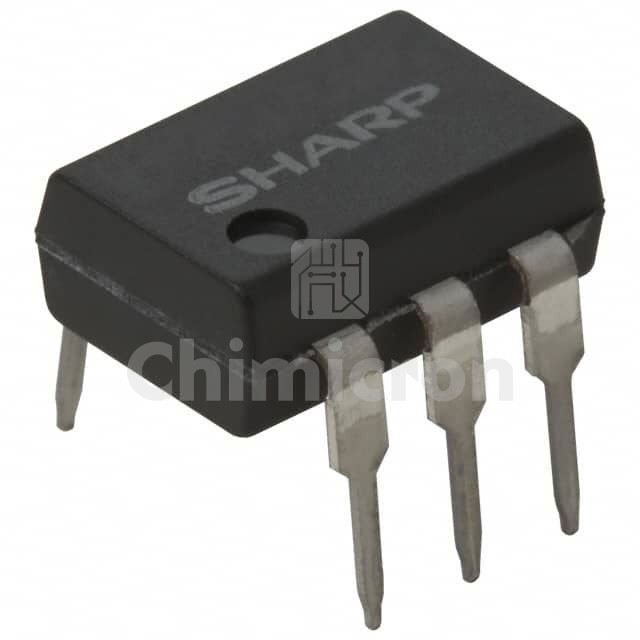

PC733H
Manufacturer: Sharp Microelectronics
Description: OPTOISO 5KV TRANS W/BASE 6DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PC733H Sharp Microelectronics at chimicron.com. We have 100000 pieces of PC733H in stock available now. Submit an inquiry for PC733H or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)20% @ 100mA
Current Transfer Ratio (Max)80% @ 100mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeAC, DC
Output TypeTransistor with Base
Voltage - Output (Max)35V
Current - Output / Channel80mA
Voltage - Forward (Vf) (Typ)1.4V
Current - DC Forward (If) (Max)150 mA
Vce Saturation (Max)200mV
Operating Temperature-25°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
