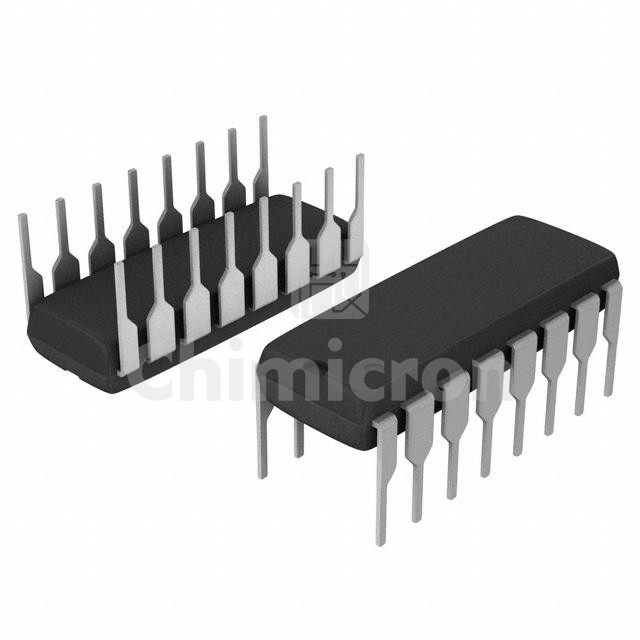

PS2506-4
Manufacturer: CEL (California Eastern Laboratories)
Description: OPTOISO 5KV 4CH DARLINGTON 16DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: NEPOC
In Stock:20000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PS2506-4 CEL (California Eastern Laboratories) at chimicron.com. We have 20000 pieces of PS2506-4 in stock available now. Submit an inquiry for PS2506-4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNEPOC
PackageTube
Part StatusObsolete
Number of Channels4
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)200% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)100µs, 100µs
Input TypeAC, DC
Output TypeDarlington
Voltage - Output (Max)40V
Current - Output / Channel160mA
Voltage - Forward (Vf) (Typ)1.17V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)1V
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case16-DIP (0.300", 7.62mm)
Supplier Device Package16-DIP
