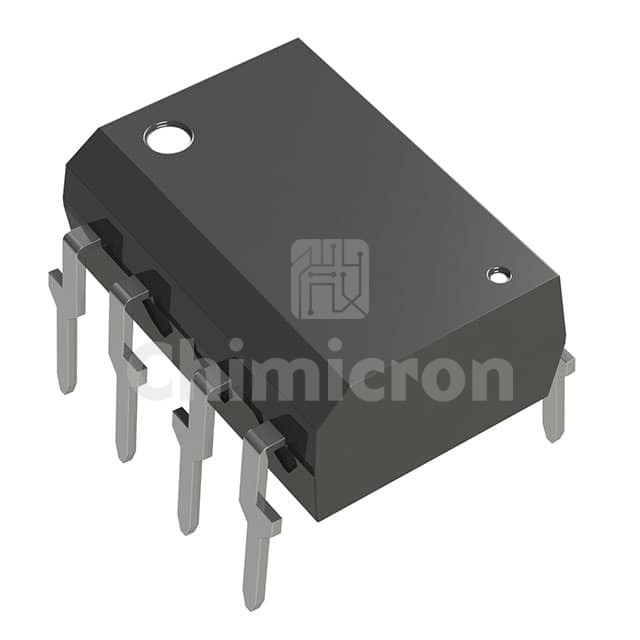

TLP550(F)
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISOLATOR 2.5KV TRANS 8-DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:9660
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP550(F) Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 9660 pieces of TLP550(F) in stock available now. Submit an inquiry for TLP550(F) or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)10% @ 16mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)300ns, 1µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)15V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.65V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
