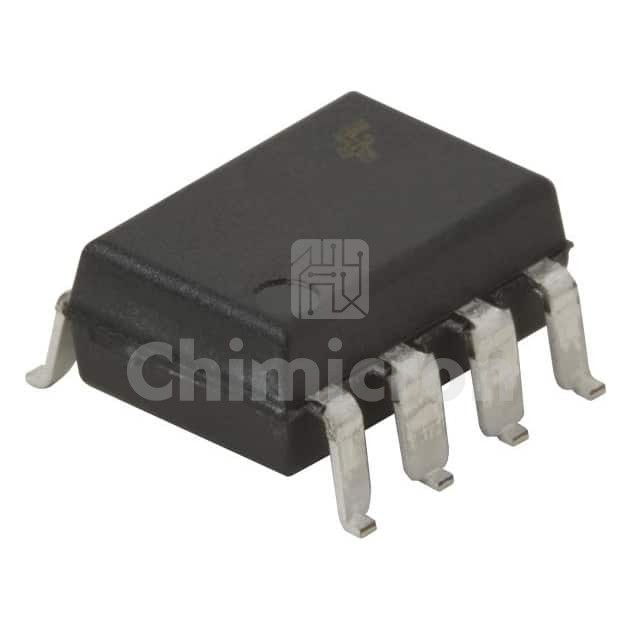

6N139SD
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOISO 2.5KV DARL W/BASE 8SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 6N139SD Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 100000 pieces of 6N139SD in stock available now. Submit an inquiry for 6N139SD or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)500% @ 1.6mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)1.5µs, 7µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington with Base
Voltage - Output (Max)18V
Current - Output / Channel60mA
Voltage - Forward (Vf) (Typ)1.3V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
