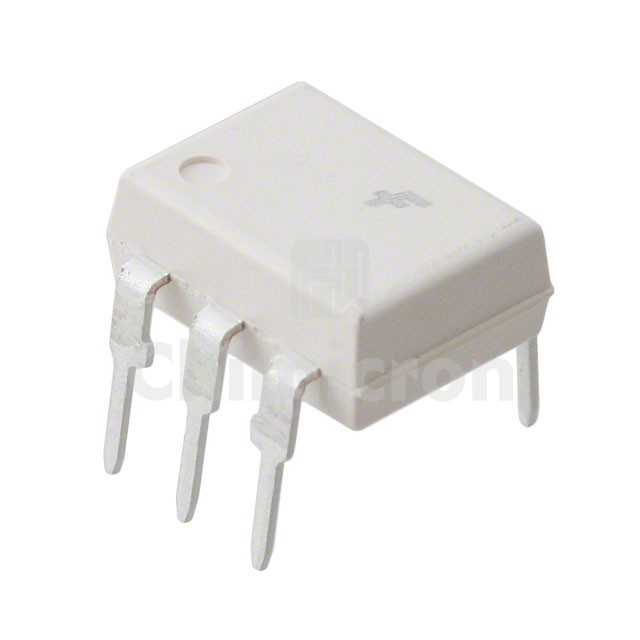

H11G1
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOISO 5.3KV DARL W/BASE 6DIP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:13240
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the H11G1 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 13240 pieces of H11G1 in stock available now. Submit an inquiry for H11G1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Channels1
Voltage - Isolation5300Vrms
Current Transfer Ratio (Min)1000% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)5µs, 100µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington with Base
Voltage - Output (Max)100V
Current - Output / Channel-
Voltage - Forward (Vf) (Typ)1.3V
Current - DC Forward (If) (Max)60 mA
Vce Saturation (Max)1V
Operating Temperature-55°C ~ 100°C
Mounting TypeThrough Hole
Package / Case6-DIP (0.300", 7.62mm)
Supplier Device Package6-DIP
