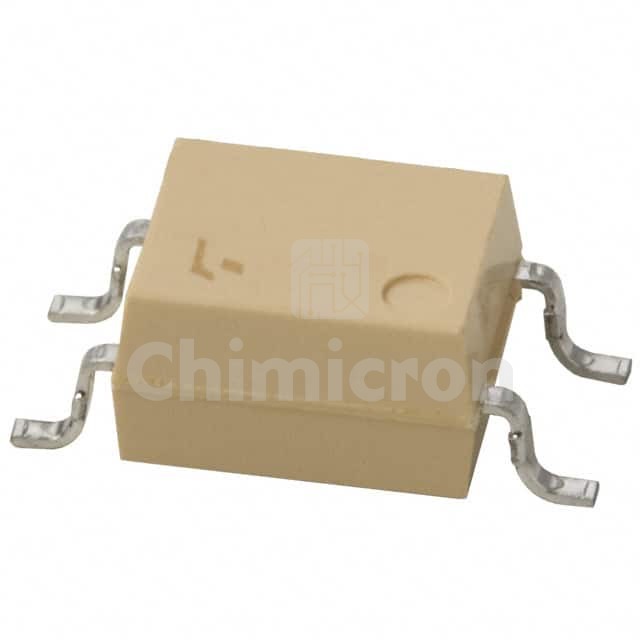

TLP126(F)
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISOLTR 3.75KV TRANS 6-MFSOP
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:7000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP126(F) Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 7000 pieces of TLP126(F) in stock available now. Submit an inquiry for TLP126(F) or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)100% @ 1mA
Current Transfer Ratio (Max)1200% @ 1mA
Turn On / Turn Off Time (Typ)10µs, 8µs
Rise / Fall Time (Typ)8µs, 8µs
Input TypeAC, DC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.15V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)400mV
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD (4 Leads), Gull Wing
Supplier Device Package6-MFSOP, 4 Lead
