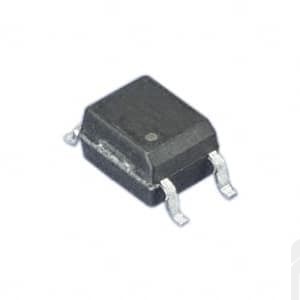

PC452
Manufacturer: Sharp Microelectronics
Description: OPTOISOLATOR 3.75KV DARL 4SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:32000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PC452 Sharp Microelectronics at chimicron.com. We have 32000 pieces of PC452 in stock available now. Submit an inquiry for PC452 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)1000% @ 1mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)100µs, 20µs
Input TypeDC
Output TypeDarlington
Voltage - Output (Max)350V
Current - Output / Channel150mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)1.2V
Operating Temperature-30°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SMD
