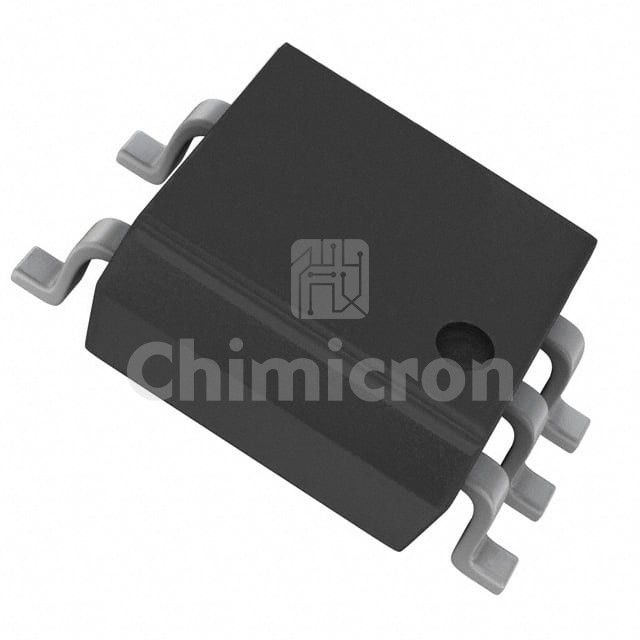

PS8101-F3-A
Manufacturer: CEL (California Eastern Laboratories)
Description: OPTOISOLATOR 3.75KV TRANS 6SO
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: NEPOC
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PS8101-F3-A CEL (California Eastern Laboratories) at chimicron.com. We have 50000 pieces of PS8101-F3-A in stock available now. Submit an inquiry for PS8101-F3-A or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNEPOC
PackageTape & Reel (TR)
Part StatusObsolete
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)15% @ 16mA
Current Transfer Ratio (Max)35% @ 16mA
Turn On / Turn Off Time (Typ)500ns, 600ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)35V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.7V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package5-SOP
