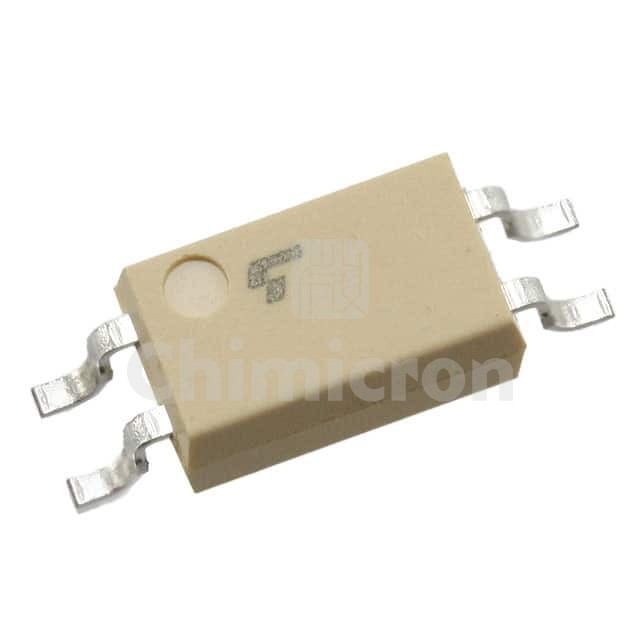

TLP291(GB-TP,E)
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISOLATOR 3.75KV TRANS 4-SO
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:15750
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP291(GB-TP,E) Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 15750 pieces of TLP291(GB-TP,E) in stock available now. Submit an inquiry for TLP291(GB-TP,E) or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)100% @ 5mA
Current Transfer Ratio (Max)400% @ 5mA
Turn On / Turn Off Time (Typ)7µs, 7µs
Rise / Fall Time (Typ)4µs, 7µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.25V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-55°C ~ 110°C
Mounting TypeSurface Mount
Package / Case4-SOIC (0.179", 4.55mm Width)
Supplier Device Package4-SO
