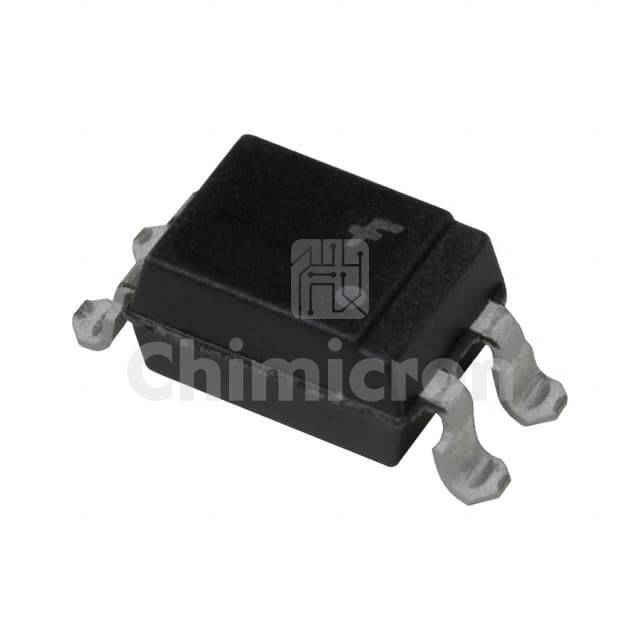

HMA2701AR1
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: OPTOISO 3.75KV TRANSISTOR 4SMD
Category : Isolators
Family: Optoisolators - Transistor, Photovoltaic Output
Series: -
In Stock:5000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the HMA2701AR1 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 5000 pieces of HMA2701AR1 in stock available now. Submit an inquiry for HMA2701AR1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusObsolete
Number of Channels1
Voltage - Isolation3750Vrms
Current Transfer Ratio (Min)150% @ 5mA
Current Transfer Ratio (Max)300% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)3µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)40V
Current - Output / Channel80mA
Voltage - Forward (Vf) (Typ)1.3V (Max)
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)300mV
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SMD
