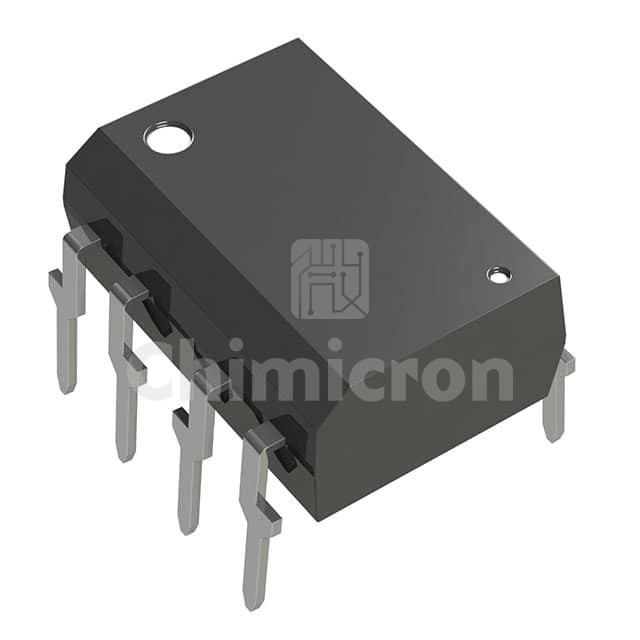

TLP250(F)
Manufacturer: Toshiba Electronic Devices and Storage Corporation
Description: OPTOISO 2.5KV 1CH GATE DRVR 8DIP
Category : Isolators
Family: Isolators - Gate Drivers
Series: -
In Stock:52500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TLP250(F) Toshiba Electronic Devices and Storage Corporation at chimicron.com. We have 52500 pieces of TLP250(F) in stock available now. Submit an inquiry for TLP250(F) or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusObsolete
TechnologyOptical Coupling
Number of Channels1
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)5kV/µs
Propagation Delay tpLH / tpHL (Max)500ns, 500ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)-
Current - Output High, Low500mA, 500mA
Current - Peak Output1.5A
Voltage - Forward (Vf) (Typ)1.6V
Current - DC Forward (If) (Max)20 mA
Voltage - Output Supply15V ~ 30V
Operating Temperature-20°C ~ 85°C
Mounting TypeThrough Hole
Package / Case8-DIP (0.300", 7.62mm)
Supplier Device Package8-DIP
Approval AgencyUR
