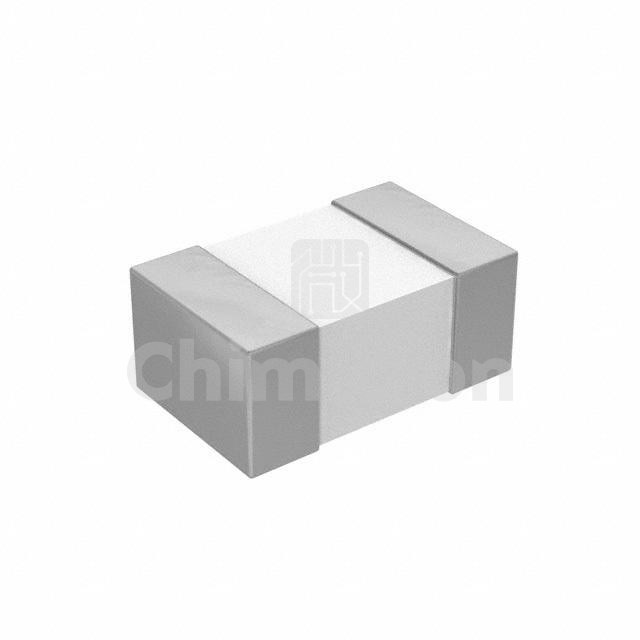

AIMC-0805-22NJ-T
Manufacturer: Abracon
Description: FIXED IND 22NH 300MA 500 MOHM
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: AIMC-0805
In Stock:248
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AIMC-0805-22NJ-T Abracon at chimicron.com. We have 248 pieces of AIMC-0805-22NJ-T in stock available now. Submit an inquiry for AIMC-0805-22NJ-T or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAIMC-0805
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeMultilayer
Material - CoreCeramic
Inductance22 nH
Tolerance±5%
Current Rating (Amps)300 mA
Current - Saturation (Isat)-
ShieldingUnshielded
DC Resistance (DCR)500mOhm Max
Q @ Freq15 @ 100MHz
Frequency - Self Resonant1.4GHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100 MHz
Features-
Mounting TypeSurface Mount
Package / Case0805 (2012 Metric)
Supplier Device Package0805 (2012 Metric)
Size / Dimension0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)0.041" (1.05mm)
