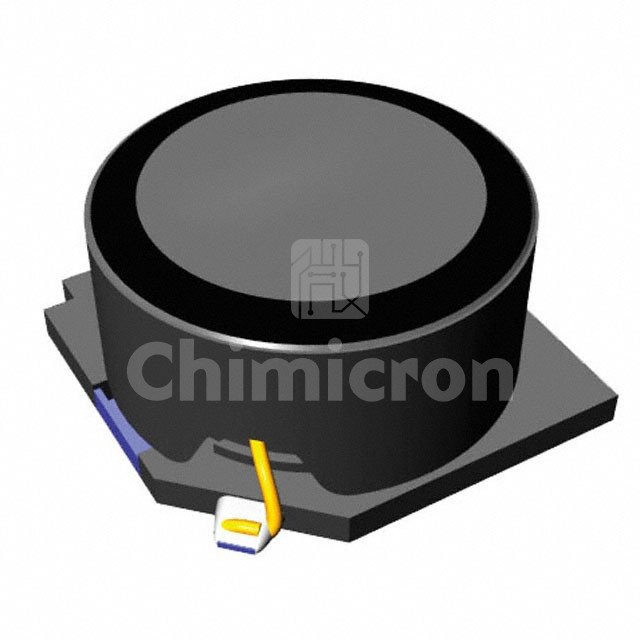

NS12565T220MNV
Manufacturer: TAIYO YUDEN
Description: FIXED IND 22UH 3.91A 37.2 MOHM
Category : Inductors, Coils, Chokes
Family: Fixed Inductors
Series: NS
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NS12565T220MNV TAIYO YUDEN at chimicron.com. We have 500000 pieces of NS12565T220MNV in stock available now. Submit an inquiry for NS12565T220MNV or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNS
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22 µH
Tolerance±20%
Current Rating (Amps)3.91 A
Current - Saturation (Isat)4.2A
ShieldingShielded
DC Resistance (DCR)37.2mOhm Max
Q @ Freq-
Frequency - Self Resonant12.5MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100 kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)0.270" (6.85mm)
