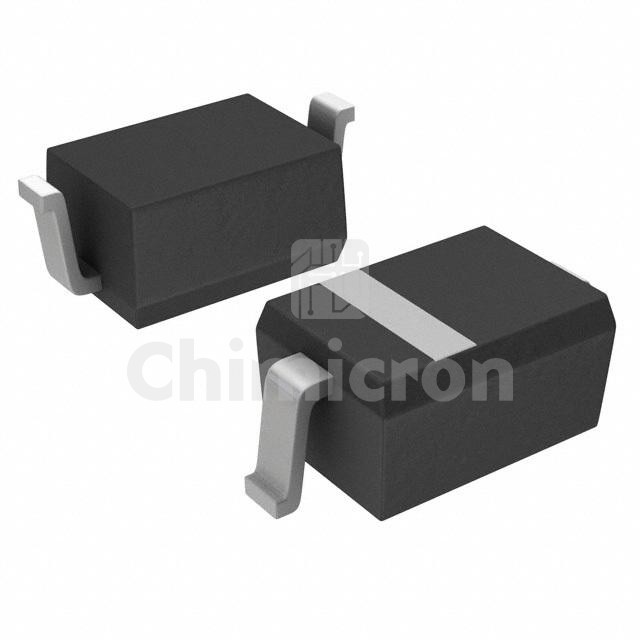

SD05T1G
SD05T1G

Manufacturer: Rochester Electronics

Description: DIODE
Category : Circuit Protection Devices
Family: TVS - Diodes
Series: Automotive, AEC-Q101
In Stock:315000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SD05T1G Rochester Electronics at chimicron.com. We have 315000 pieces of SD05T1G in stock available now. Submit an inquiry for SD05T1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageBulk
Part StatusActive
TypeZener
Unidirectional Channels1
Bidirectional Channels-
Voltage - Reverse Standoff (Typ)5V
Voltage - Breakdown (Min)6.2V
Voltage - Clamping (Max) @ Ipp9.8V
Current - Peak Pulse (10/1000µs)24A (8/20µs)
Power - Peak Pulse350W
Power Line ProtectionNo
ApplicationsAutomotive
Capacitance @ Frequency350pF @ 1MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
