FDMC6675BZ
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 30V 9.5A/20A 8MLP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDMC6675BZ Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 300000 pieces of FDMC6675BZ in stock available now. Submit an inquiry for FDMC6675BZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C9.5A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs14.4mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs65 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds2865 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.3W (Ta), 36W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount

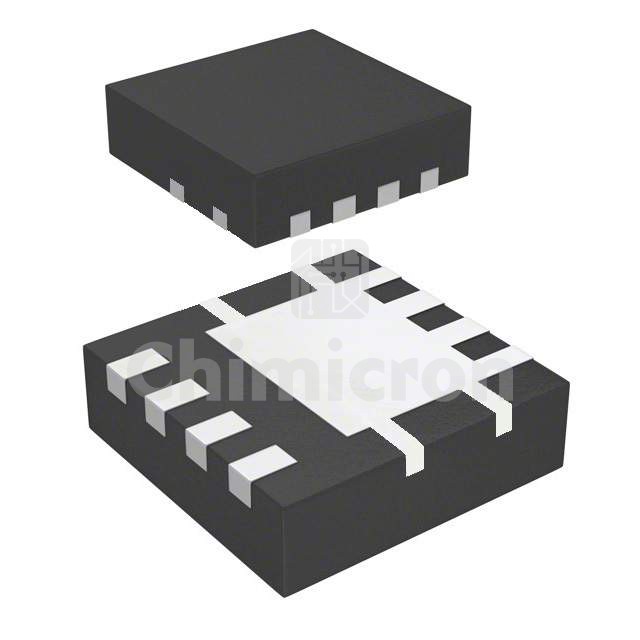

Supplier Device Package8-MLP (3.3x3.3)
Package / Case8-PowerWDFN
