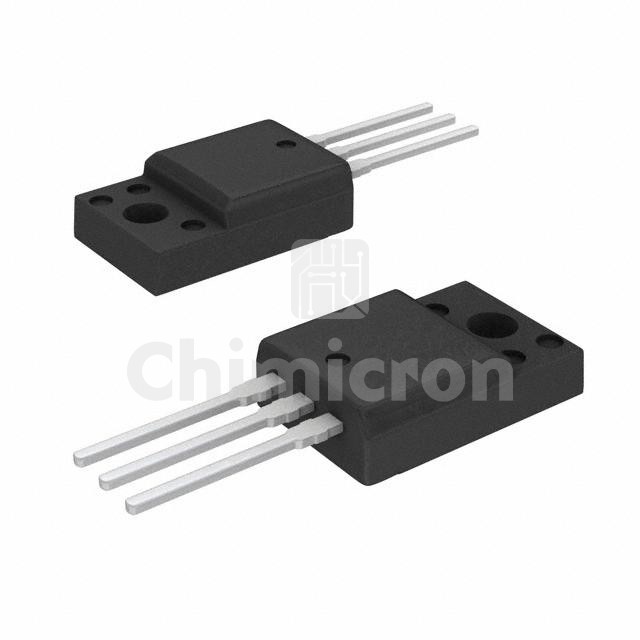

FDPF3860T
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 100V 20A TO220F
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDPF3860T Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 50000 pieces of FDPF3860T in stock available now. Submit an inquiry for FDPF3860T or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs38.2mOhm @ 5.9A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs35 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1800 pF @ 25 V
FET Feature-
Power Dissipation (Max)33.8W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F
Package / CaseTO-220-3 Full Pack
