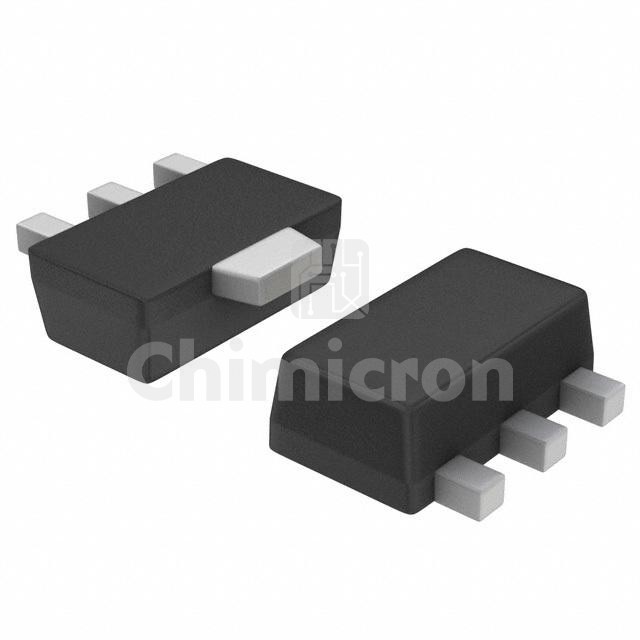

PCP1302-TD-H
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 60V 3A SOT89/PCP-1
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:32765
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PCP1302-TD-H Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 32765 pieces of PCP1302-TD-H in stock available now. Submit an inquiry for PCP1302-TD-H or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs266mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs6.4 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds262 pF @ 20 V
FET Feature-
Power Dissipation (Max)3.5W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-89/PCP-1
Package / CaseTO-243AA
