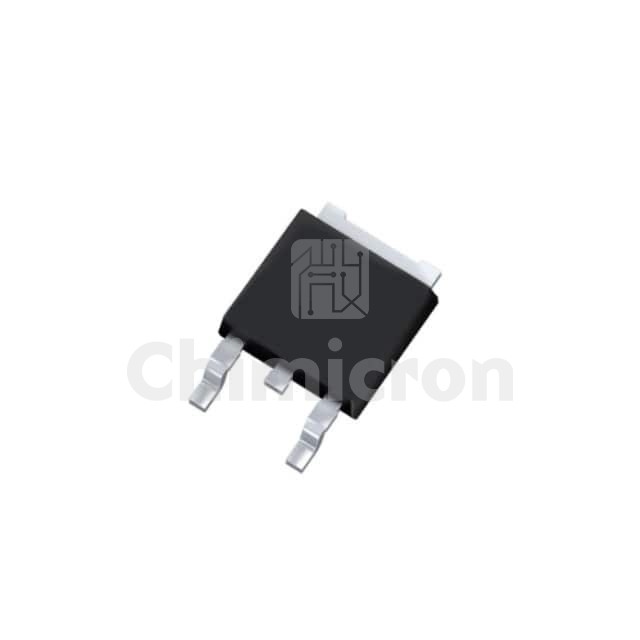

IPD90P04P405ATMA2
Manufacturer: IR (Infineon Technologies)
Description: MOSFET P-CH 40V 90A TO252-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS®-P2
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPD90P04P405ATMA2 IR (Infineon Technologies) at chimicron.com. We have 5250 pieces of IPD90P04P405ATMA2 in stock available now. Submit an inquiry for IPD90P04P405ATMA2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS®-P2
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4.7mOhm @ 90A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs154 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds10300 pF @ 25 V
FET Feature-
Power Dissipation (Max)125W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3-313
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
