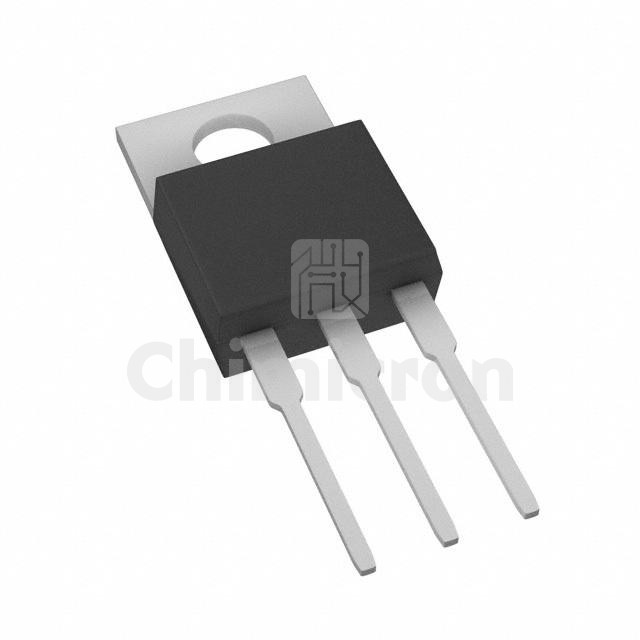

SQP100P06-9M3L_GE3
Manufacturer: Vishay / Siliconix
Description: MOSFET P-CH 60V 100A TO220AB
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, TrenchFET®
In Stock:2100
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SQP100P06-9M3L_GE3 Vishay / Siliconix at chimicron.com. We have 2100 pieces of SQP100P06-9M3L_GE3 in stock available now. Submit an inquiry for SQP100P06-9M3L_GE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, TrenchFET®
PackageCut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs9.3mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs300 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds12010 pF @ 25 V
FET Feature-
Power Dissipation (Max)187W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB
Package / CaseTO-220-3
