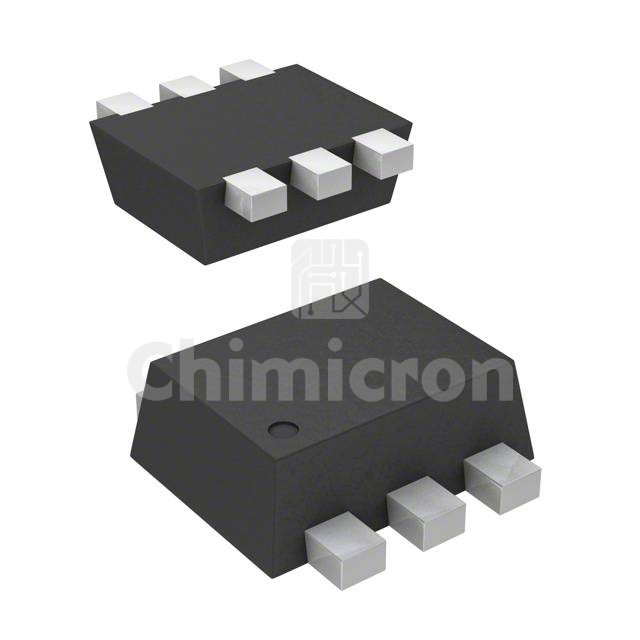

CMLDM7120G TR PBFREE
Manufacturer: Central Semiconductor
Description: MOSFET N-CH 20V 1A SOT563
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:20
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CMLDM7120G TR PBFREE Central Semiconductor at chimicron.com. We have 20 pieces of CMLDM7120G TR PBFREE in stock available now. Submit an inquiry for CMLDM7120G TR PBFREE or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4V
Rds On (Max) @ Id, Vgs100mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs2.4 nC @ 4.5 V
Vgs (Max)8V
Input Capacitance (Ciss) (Max) @ Vds220 pF @ 10 V
FET Feature-
Power Dissipation (Max)150mW (Ta)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-563
Package / CaseSOT-563, SOT-666
