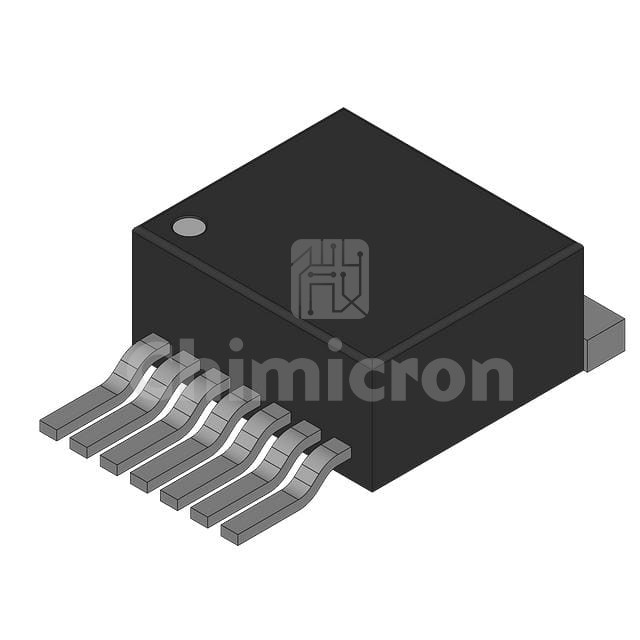

IPB180N06S4H1ATMA2
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 180A TO263-7
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, OptiMOS™
In Stock:400000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPB180N06S4H1ATMA2 IR (Infineon Technologies) at chimicron.com. We have 400000 pieces of IPB180N06S4H1ATMA2 in stock available now. Submit an inquiry for IPB180N06S4H1ATMA2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.7mOhm @ 100A, 10V
Vgs(th) (Max) @ Id4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs270 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds21900 pF @ 25 V
FET Feature-
Power Dissipation (Max)250W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO263-7-3
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
