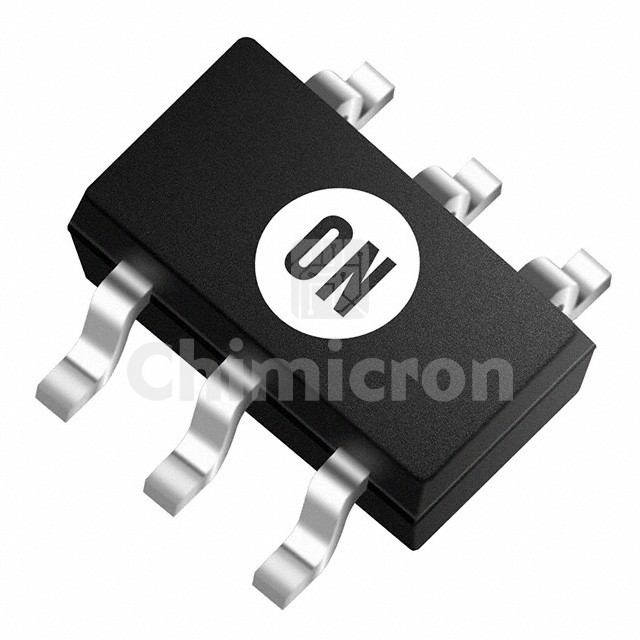

NTJS3151PT2G
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET P-CH 12V 2.7A SC88/SC70-6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:912781
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTJS3151PT2G Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 912781 pieces of NTJS3151PT2G in stock available now. Submit an inquiry for NTJS3151PT2G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C2.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs60mOhm @ 3.3A, 4.5V
Vgs(th) (Max) @ Id400mV @ 100µA
Gate Charge (Qg) (Max) @ Vgs8.6 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds850 pF @ 12 V
FET Feature-
Power Dissipation (Max)625mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-88/SC70-6/SOT-363
Package / Case6-TSSOP, SC-88, SOT-363
