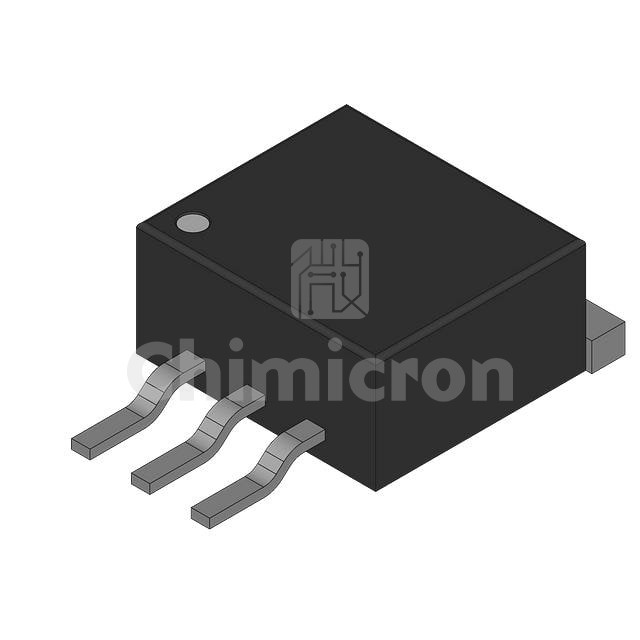

IPD5N25S3430ATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 250V 5A TO252-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, OptiMOS™
In Stock:274362
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPD5N25S3430ATMA1 IR (Infineon Technologies) at chimicron.com. We have 274362 pieces of IPD5N25S3430ATMA1 in stock available now. Submit an inquiry for IPD5N25S3430ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)250 V
Current - Continuous Drain (Id) @ 25°C5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs430mOhm @ 5A, 10V
Vgs(th) (Max) @ Id4V @ 13µA
Gate Charge (Qg) (Max) @ Vgs6.2 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds422 pF @ 25 V
FET Feature-
Power Dissipation (Max)41W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO252-3-313
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
