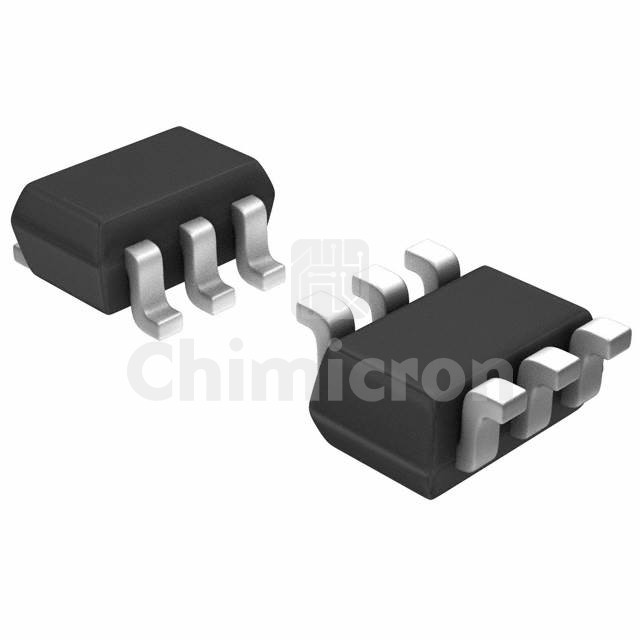

FDG315N
Manufacturer: Rochester Electronics
Description: 2A, 30V, N-CHANNEL, MOSFET
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: PowerTrench®
In Stock:258
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDG315N Rochester Electronics at chimicron.com. We have 258 pieces of FDG315N in stock available now. Submit an inquiry for FDG315N or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPowerTrench®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs120mOhm @ 2A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4 nC @ 5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds220 pF @ 15 V
FET Feature-
Power Dissipation (Max)750mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-88 (SC-70-6)
Package / Case6-TSSOP, SC-88, SOT-363
