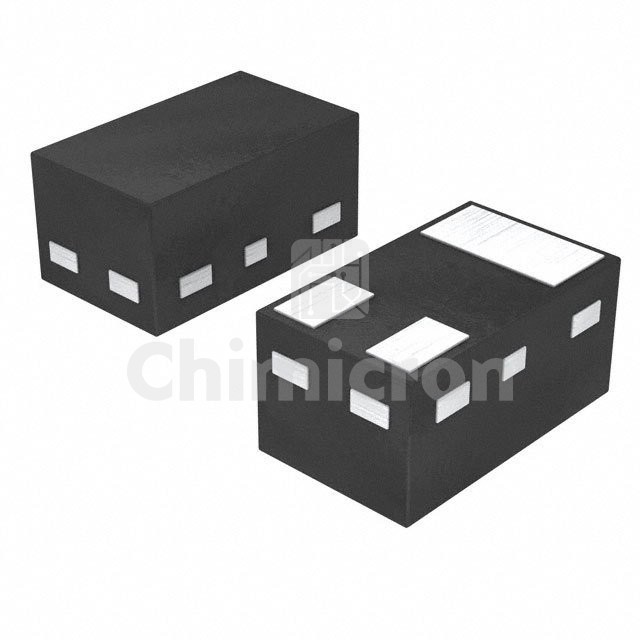

PMZB290UNE,315
Manufacturer: Rochester Electronics
Description: MOSFET N-CH 20V 1A DFN1006B-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:1329422
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PMZB290UNE,315 Rochester Electronics at chimicron.com. We have 1329422 pieces of PMZB290UNE,315 in stock available now. Submit an inquiry for PMZB290UNE,315 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs380mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.68 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds83 pF @ 10 V
FET Feature-
Power Dissipation (Max)360mW (Ta), 2.7W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006B-3
Package / Case3-XFDFN
