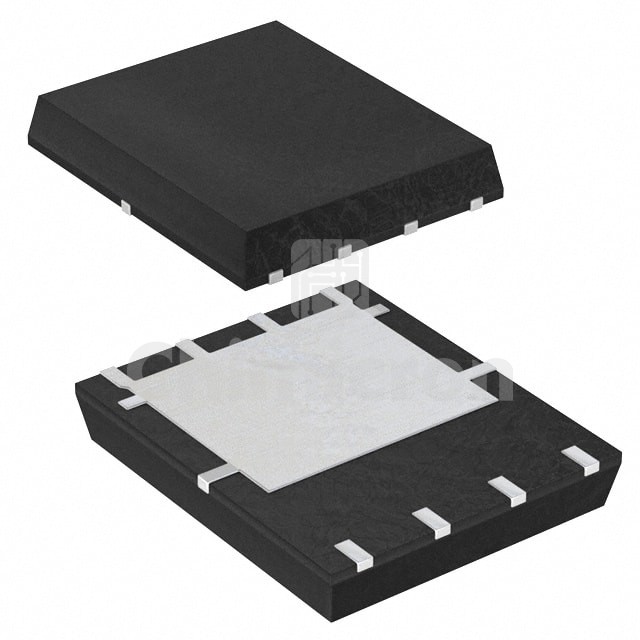

RS1G120MNTB
RS1G120MNTB

Manufacturer: ROHM Semiconductor

Description: MOSFET N-CH 40V 12A 8HSOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:601532
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the RS1G120MNTB ROHM Semiconductor at chimicron.com. We have 601532 pieces of RS1G120MNTB in stock available now. Submit an inquiry for RS1G120MNTB or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C12A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs16.2mOhm @ 12A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs9.4 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds570 pF @ 20 V
FET Feature-
Power Dissipation (Max)3W (Ta), 25W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-HSOP
Package / Case8-PowerTDFN
