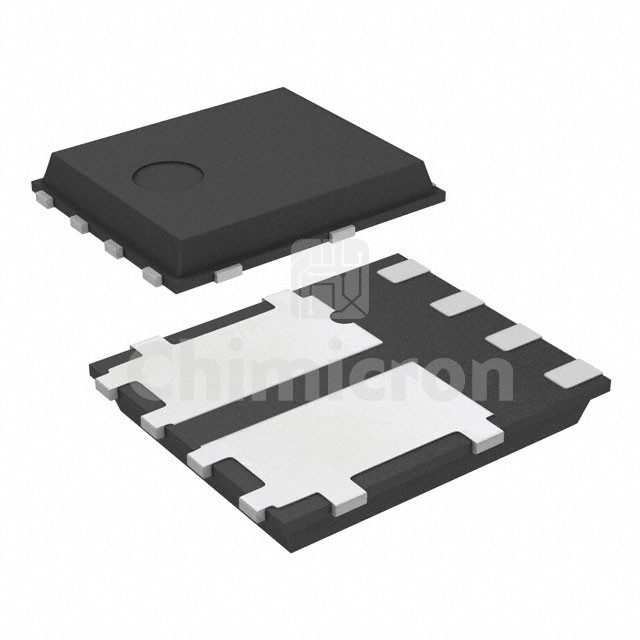

STL7LN80K5
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 800V 5A POWERFLAT
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: MDmesh™
In Stock:788
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STL7LN80K5 STMicroelectronics at chimicron.com. We have 788 pieces of STL7LN80K5 in stock available now. Submit an inquiry for STL7LN80K5 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMDmesh™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.15Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds270 pF @ 100 V
FET Feature-
Power Dissipation (Max)42W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6)
Package / Case8-PowerVDFN
