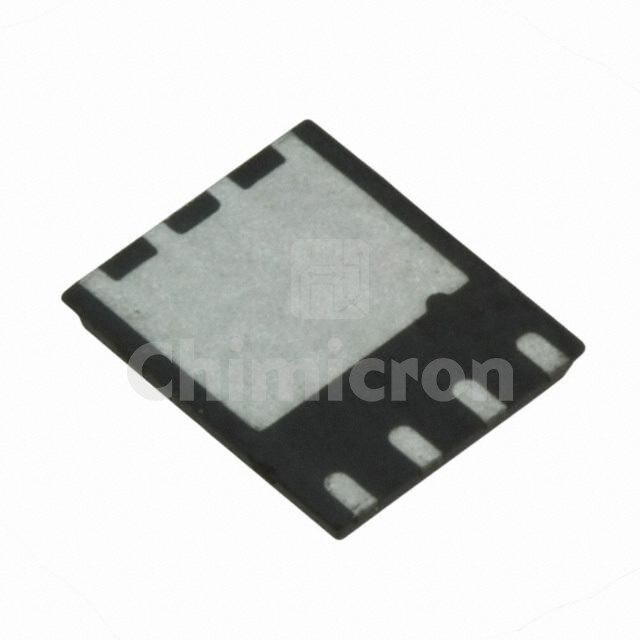

IRFH5210TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 100V 10A/55A 8PQFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:70350
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRFH5210TRPBF IR (Infineon Technologies) at chimicron.com. We have 70350 pieces of IRFH5210TRPBF in stock available now. Submit an inquiry for IRFH5210TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C10A (Ta), 55A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs14.9mOhm @ 33A, 10V
Vgs(th) (Max) @ Id4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs59 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2570 pF @ 25 V
FET Feature-
Power Dissipation (Max)3.6W (Ta), 104W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PQFN (5x6)
Package / Case8-PowerVDFN
