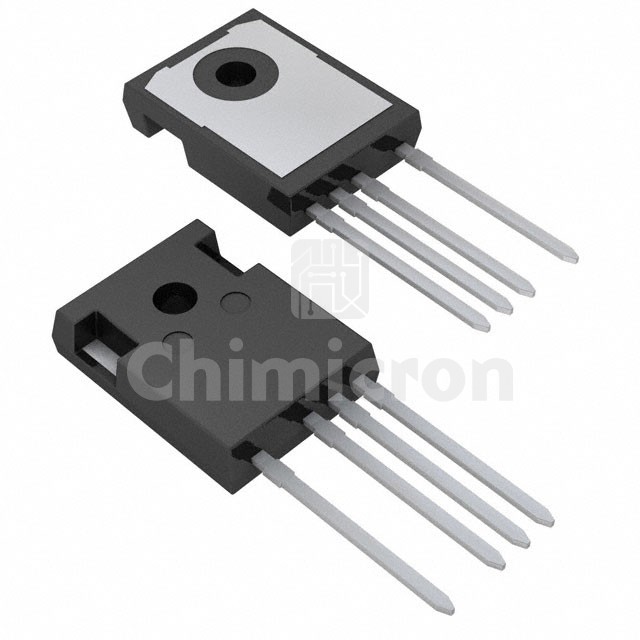

STW48N60M2-4
STW48N60M2-4

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 600V 42A TO247-4L
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: MDmesh™ M2
In Stock:25778
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STW48N60M2-4 STMicroelectronics at chimicron.com. We have 25778 pieces of STW48N60M2-4 in stock available now. Submit an inquiry for STW48N60M2-4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesMDmesh™ M2
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C42A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs70mOhm @ 21A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs70 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds3060 pF @ 100 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4L
Package / CaseTO-247-4
