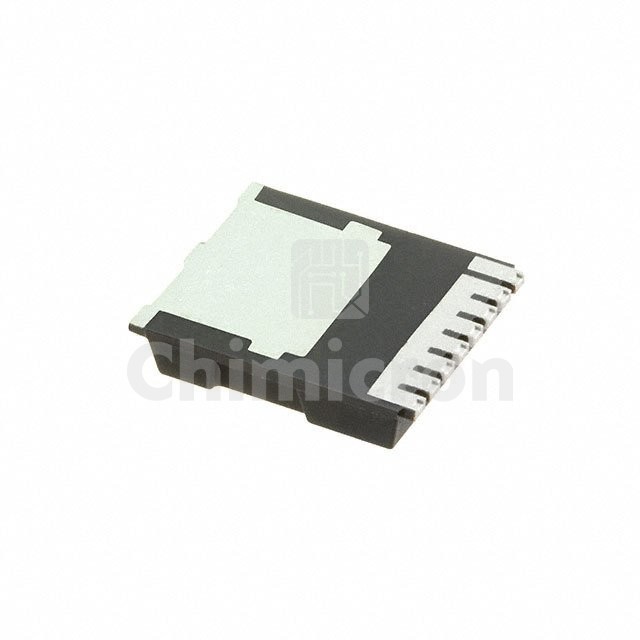

IPLU300N04S4R8XTMA1
IPLU300N04S4R8XTMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 40V 300A 8HSOF
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:2900
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPLU300N04S4R8XTMA1 IR (Infineon Technologies) at chimicron.com. We have 2900 pieces of IPLU300N04S4R8XTMA1 in stock available now. Submit an inquiry for IPLU300N04S4R8XTMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C300A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs0.77mOhm @ 100A, 10V
Vgs(th) (Max) @ Id4V @ 230µA
Gate Charge (Qg) (Max) @ Vgs287 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds22945 pF @ 25 V
FET Feature-
Power Dissipation (Max)429W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-HSOF-8-1
Package / Case8-PowerSFN
