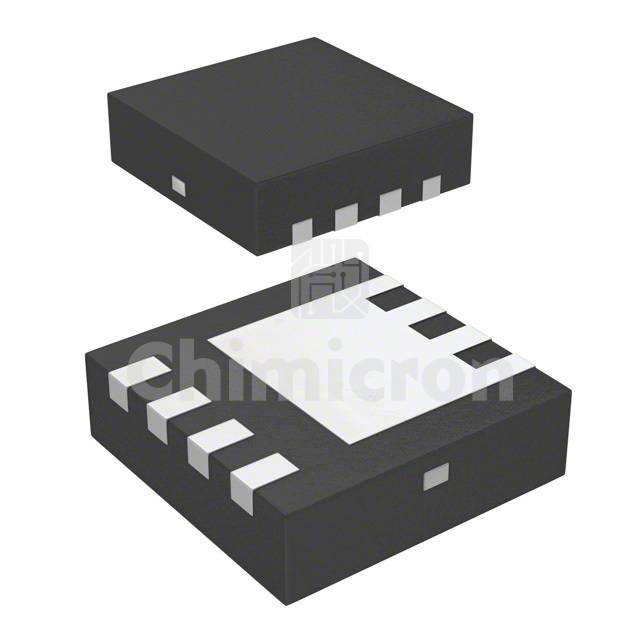

BSZ067N06LS3GATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 60V 14A/20A 8TSDSON
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:531500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSZ067N06LS3GATMA1 IR (Infineon Technologies) at chimicron.com. We have 531500 pieces of BSZ067N06LS3GATMA1 in stock available now. Submit an inquiry for BSZ067N06LS3GATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs6.7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.2V @ 35µA
Gate Charge (Qg) (Max) @ Vgs67 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5100 pF @ 30 V
FET Feature-
Power Dissipation (Max)2.1W (Ta), 69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TSDSON-8
Package / Case8-PowerVDFN
