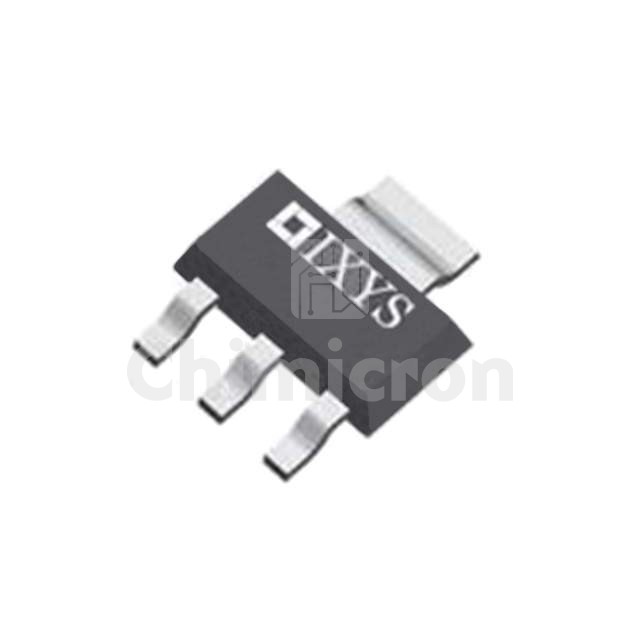

CPC3980ZTR
Manufacturer: Wickmann / Littelfuse
Description: MOSFET N-CH 800V SOT223
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:6500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the CPC3980ZTR Wickmann / Littelfuse at chimicron.com. We have 6500 pieces of CPC3980ZTR in stock available now. Submit an inquiry for CPC3980ZTR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)800 V
Current - Continuous Drain (Id) @ 25°C-
Drive Voltage (Max Rds On, Min Rds On)0V
Rds On (Max) @ Id, Vgs45Ohm @ 100mA, 0V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±15V
Input Capacitance (Ciss) (Max) @ Vds115 pF @ 25 V
FET FeatureDepletion Mode
Power Dissipation (Max)1.8W (Ta)
Operating Temperature-55°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
