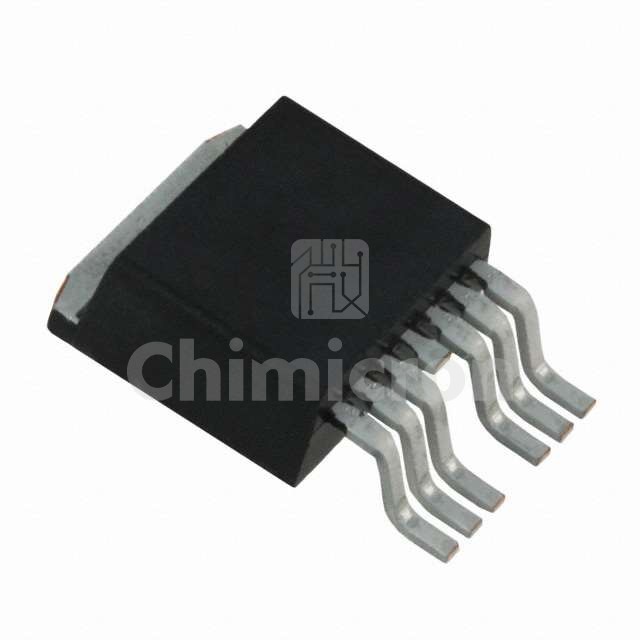

IRL40SC228
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 557A D2PAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: StrongIRFET™
In Stock:20010
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRL40SC228 IR (Infineon Technologies) at chimicron.com. We have 20010 pieces of IRL40SC228 in stock available now. Submit an inquiry for IRL40SC228 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesStrongIRFET™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C557A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.65mOhm @ 100A, 10V
Vgs(th) (Max) @ Id2.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs307 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds19680 pF @ 25 V
FET Feature-
Power Dissipation (Max)416W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK (7-Lead)
Package / CaseTO-263-7, D²Pak (6 Leads + Tab), TO-263CB
