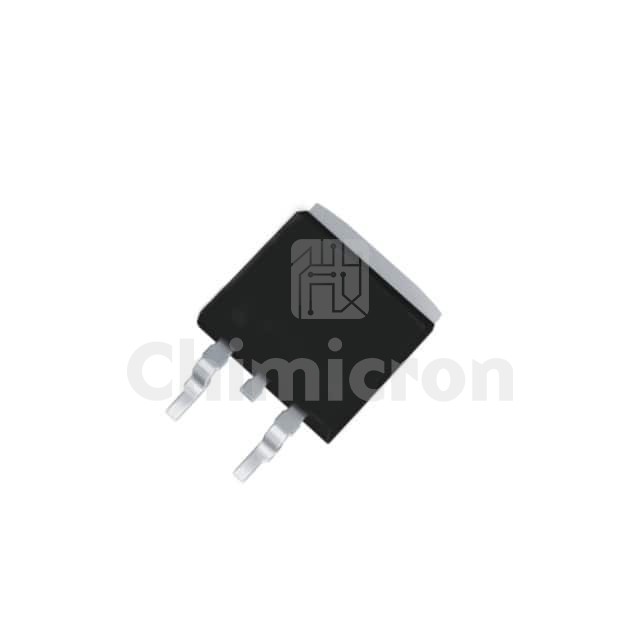

FCB125N65S3
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 650V 24A TO263
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: SuperFET® III
In Stock:1000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FCB125N65S3 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 1000 pieces of FCB125N65S3 in stock available now. Submit an inquiry for FCB125N65S3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSuperFET® III
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)650 V
Current - Continuous Drain (Id) @ 25°C24A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs125mOhm @ 12A, 10V
Vgs(th) (Max) @ Id4.5V @ 590µA
Gate Charge (Qg) (Max) @ Vgs46 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds1940 pF @ 400 V
FET Feature-
Power Dissipation (Max)181W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-263 (D2Pak)
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
