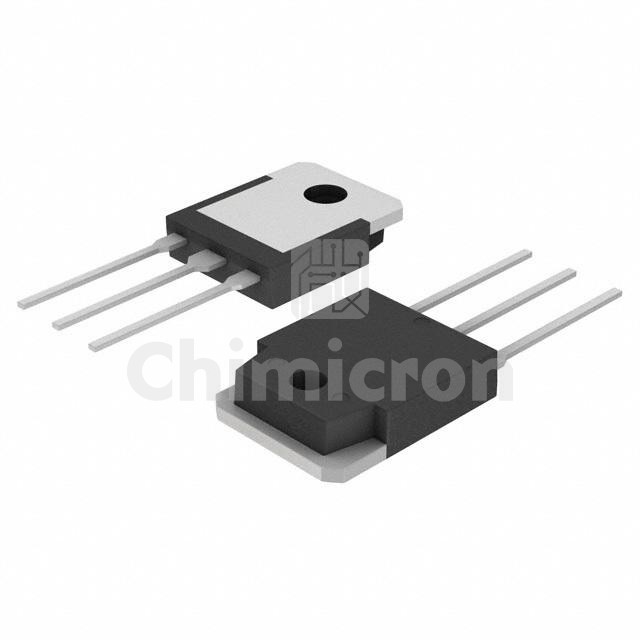

FQA9N90C-F109
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 900V 9A TO3P
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: QFET®
In Stock:4200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FQA9N90C-F109 Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 4200 pieces of FQA9N90C-F109 in stock available now. Submit an inquiry for FQA9N90C-F109 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesQFET®
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)900 V
Current - Continuous Drain (Id) @ 25°C9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.4Ohm @ 4.5A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs58 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds2730 pF @ 25 V
FET Feature-
Power Dissipation (Max)280W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3P
Package / CaseTO-3P-3, SC-65-3
