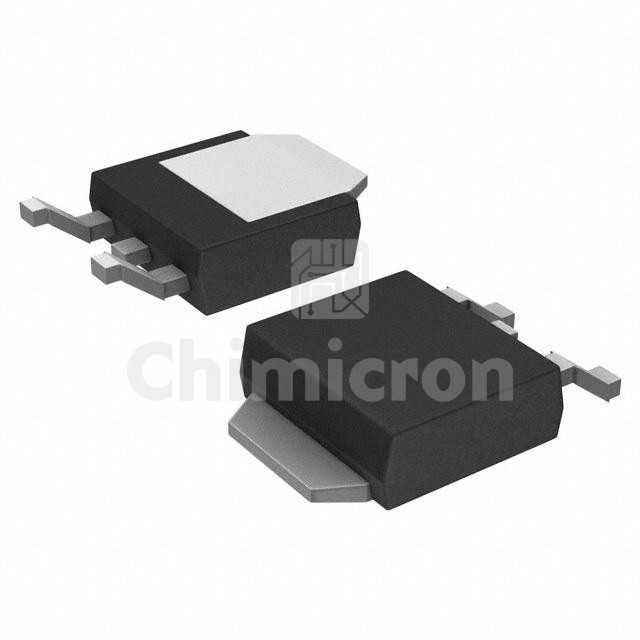

NTD4809NT4G
NTD4809NT4G

Manufacturer:

Description: MOSFET N-CH 30V 9.6A/58A DPAK
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:300000
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NTD4809NT4G undefined at chimicron.com. We have 300000 pieces of NTD4809NT4G in stock available now. Submit an inquiry for NTD4809NT4G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C9.6A (Ta), 58A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 11.5V
Rds On (Max) @ Id, Vgs9mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 11.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1456 pF @ 12 V
FET Feature-
Power Dissipation (Max)1.4W (Ta), 52W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDPAK
Package / CaseTO-252-3, DPak (2 Leads + Tab), SC-63
