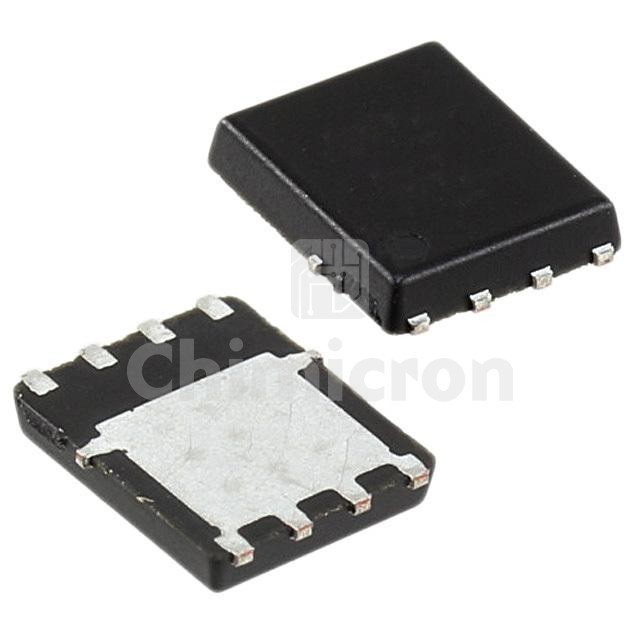

SIR690DP-T1-GE3
Manufacturer: Vishay / Siliconix
Description: MOSFET N-CH 200V 34.4A PPAK SO-8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: ThunderFET®
In Stock:6090
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SIR690DP-T1-GE3 Vishay / Siliconix at chimicron.com. We have 6090 pieces of SIR690DP-T1-GE3 in stock available now. Submit an inquiry for SIR690DP-T1-GE3 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesThunderFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C34.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)7.5V, 10V
Rds On (Max) @ Id, Vgs35mOhm @ 20A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs37 nC @ 7.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds1935 pF @ 100 V
FET Feature-
Power Dissipation (Max)104W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SO-8
Package / CasePowerPAK® SO-8
