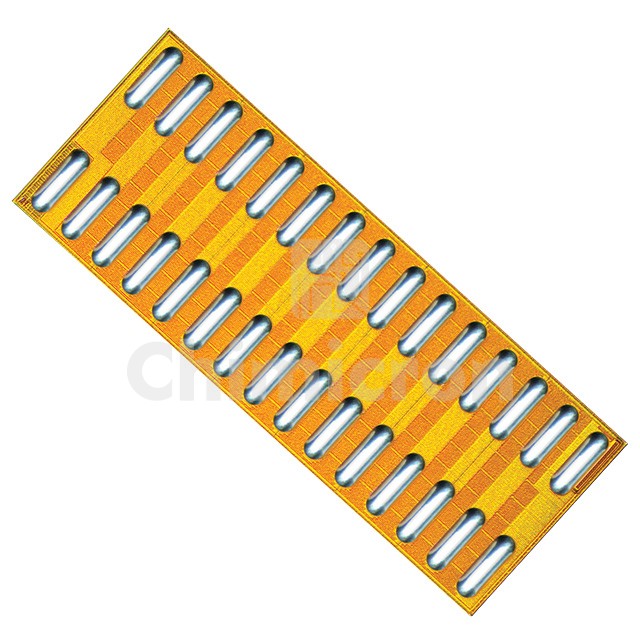

EPC2206
Manufacturer: EPC
Description: GANFET N-CH 80V 90A DIE
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: eGaN®
In Stock:26608
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the EPC2206 EPC at chimicron.com. We have 26608 pieces of EPC2206 in stock available now. Submit an inquiry for EPC2206 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SerieseGaN®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyGaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)80 V
Current - Continuous Drain (Id) @ 25°C90A (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V
Rds On (Max) @ Id, Vgs2.2mOhm @ 29A, 5V
Vgs(th) (Max) @ Id2.5V @ 13mA
Gate Charge (Qg) (Max) @ Vgs19 nC @ 5 V
Vgs (Max)+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds1940 pF @ 40 V
FET Feature-
Power Dissipation (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDie
Package / CaseDie
