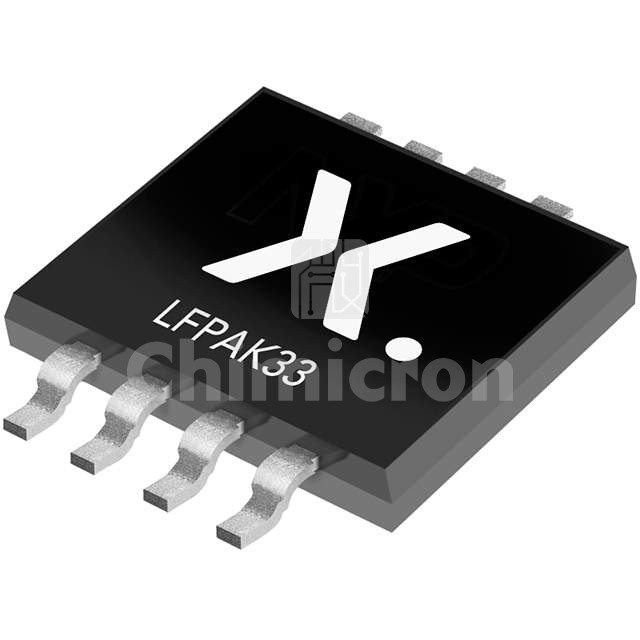

BUK9M20-40HX
Manufacturer: Nexperia
Description: MOSFET N-CH 40V 25A LFPAK33
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:3200000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BUK9M20-40HX Nexperia at chimicron.com. We have 3200000 pieces of BUK9M20-40HX in stock available now. Submit an inquiry for BUK9M20-40HX or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs20mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs12.6 nC @ 10 V
Vgs (Max)+16V, -10V
Input Capacitance (Ciss) (Max) @ Vds763 pF @ 25 V
FET Feature-
Power Dissipation (Max)38W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK33
Package / CaseSOT-1210, 8-LFPAK33 (5-Lead)
