DMS2120LFWB-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET P-CH 20V 2.9A 8DFN
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:792378
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMS2120LFWB-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 792378 pieces of DMS2120LFWB-7 in stock available now. Submit an inquiry for DMS2120LFWB-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs95mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds632 pF @ 10 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)1.5W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount

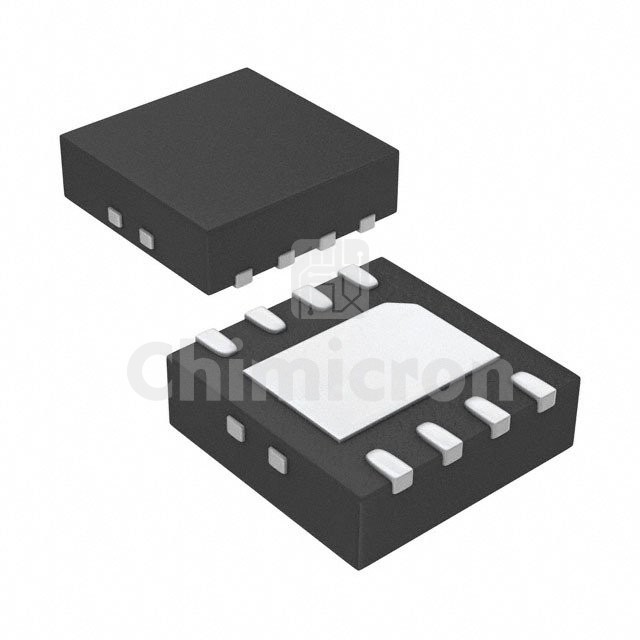

Supplier Device Package8-DFN3020B (3x2)
Package / Case8-VDFN Exposed Pad
