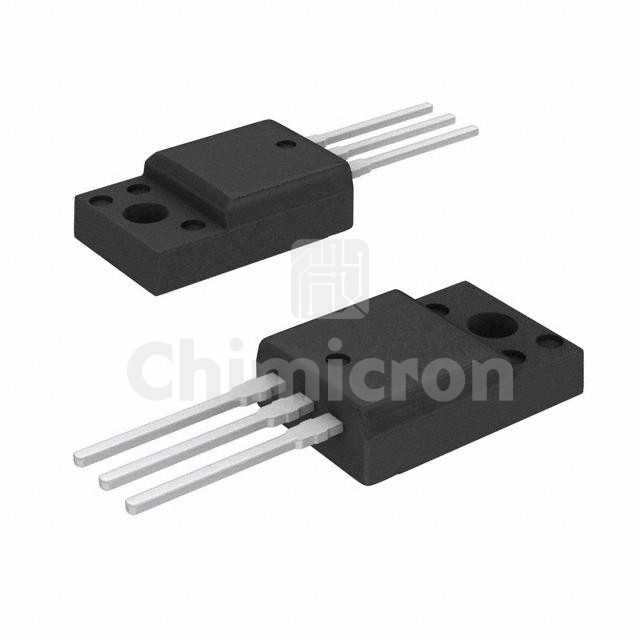

FDPF5N50NZ
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: MOSFET N-CH 500V 4.5A TO220F
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: UniFET-II™
In Stock:52596
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FDPF5N50NZ Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 52596 pieces of FDPF5N50NZ in stock available now. Submit an inquiry for FDPF5N50NZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesUniFET-II™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C4.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.5Ohm @ 2.25A, 10V
Vgs(th) (Max) @ Id5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds440 pF @ 25 V
FET Feature-
Power Dissipation (Max)30W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F
Package / CaseTO-220-3 Full Pack
