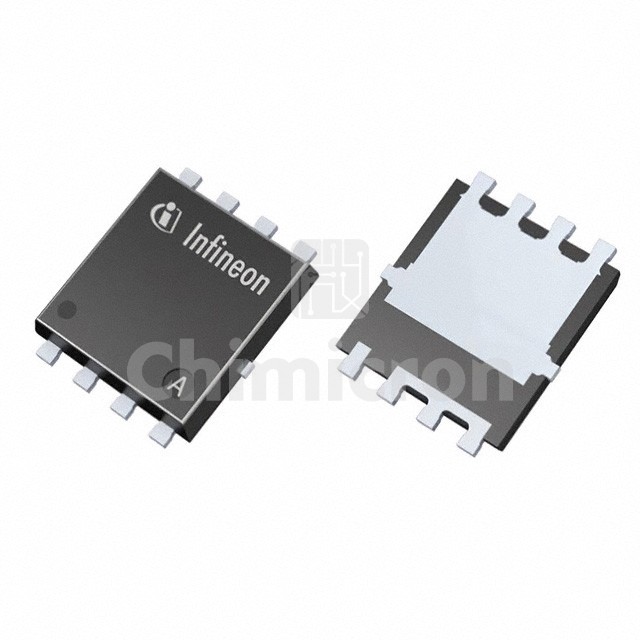

IPC100N04S52R8ATMA1
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 40V 100A 8TDSON-34
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™
In Stock:1004500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IPC100N04S52R8ATMA1 IR (Infineon Technologies) at chimicron.com. We have 1004500 pieces of IPC100N04S52R8ATMA1 in stock available now. Submit an inquiry for IPC100N04S52R8ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)7V, 10V
Rds On (Max) @ Id, Vgs2.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id3.4V @ 30µA
Gate Charge (Qg) (Max) @ Vgs45 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2600 pF @ 25 V
FET Feature-
Power Dissipation (Max)75W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-34
Package / Case8-PowerTDFN
