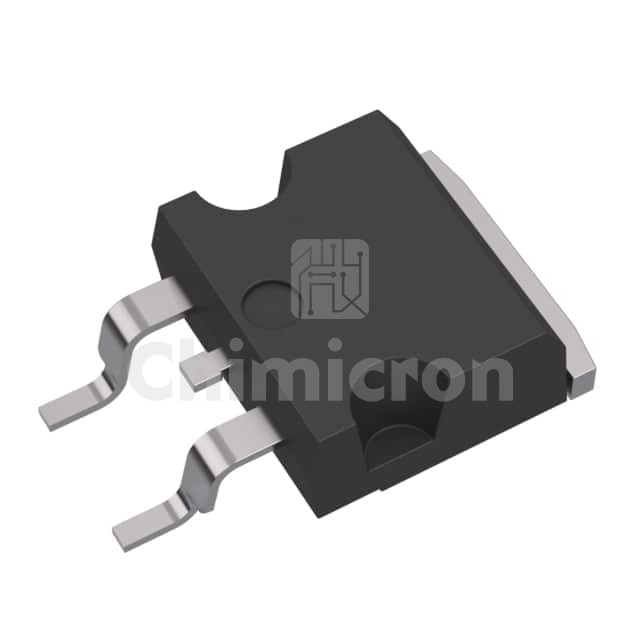

STH185N10F3-2
STH185N10F3-2

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 100V 180A H2PAK-2
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101, STripFET™ F3
In Stock:35942
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STH185N10F3-2 STMicroelectronics at chimicron.com. We have 35942 pieces of STH185N10F3-2 in stock available now. Submit an inquiry for STH185N10F3-2 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, STripFET™ F3
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs4.5mOhm @ 60A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs114.6 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6665 pF @ 25 V
FET Feature-
Power Dissipation (Max)315W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageH2Pak-2
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
