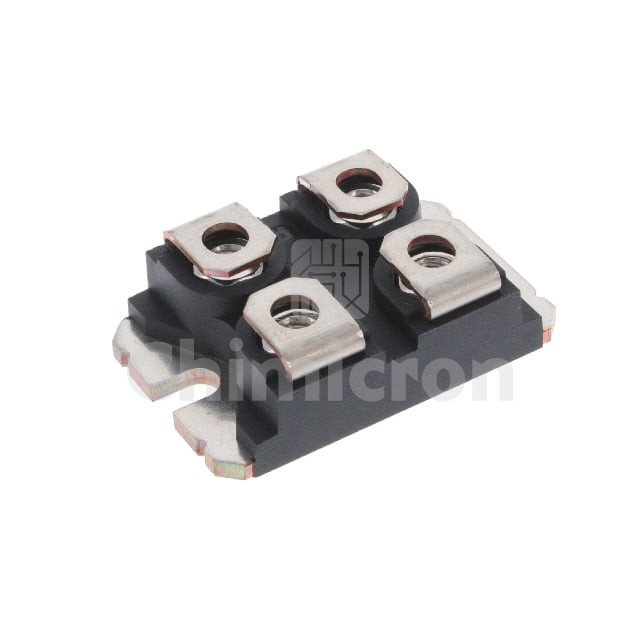

MSC025SMA120J
Manufacturer: Roving Networks / Microchip Technology
Description: SICFET N-CH 1.2KV 77A SOT227
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MSC025SMA120J Roving Networks / Microchip Technology at chimicron.com. We have 500 pieces of MSC025SMA120J in stock available now. Submit an inquiry for MSC025SMA120J or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)1.2 kV
Current - Continuous Drain (Id) @ 25°C77A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs31mOhm @ 40A, 20V
Vgs(th) (Max) @ Id2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs232 nC @ 20 V
Vgs (Max)+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds3020 pF @ 1000 V
FET Feature-
Power Dissipation (Max)278W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSOT-227 (ISOTOP®)
Package / CaseSOT-227-4, miniBLOC
