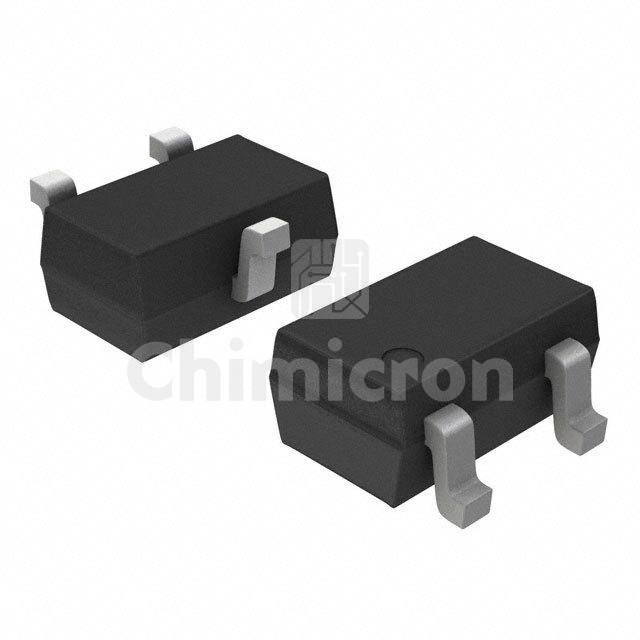

2N7002WT1G
Manufacturer: Rochester Electronics
Description: SMALL SIGNAL FIELD-EFFECT TRANSI
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:94500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2N7002WT1G Rochester Electronics at chimicron.com. We have 94500 pieces of 2N7002WT1G in stock available now. Submit an inquiry for 2N7002WT1G or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C310mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs1.6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.7 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds24.5 pF @ 20 V
FET Feature-
Power Dissipation (Max)280mW (Tj)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70-3 (SOT323)
Package / CaseSC-70, SOT-323
