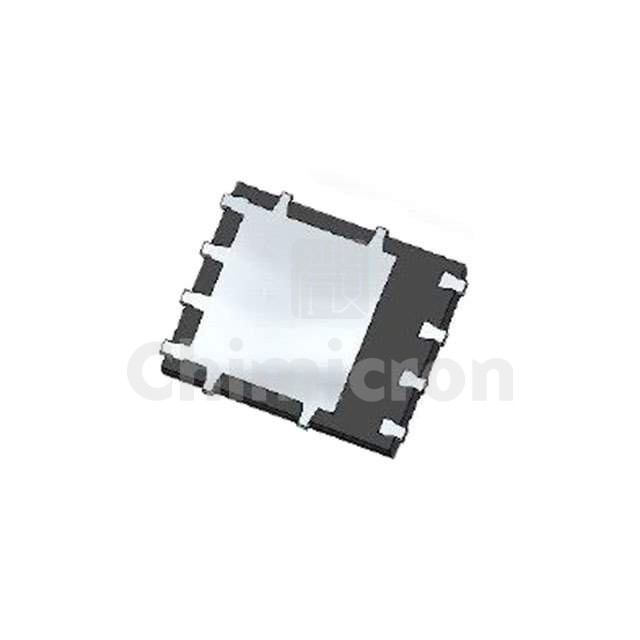

DMT12H007LPS-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: MOSFET N-CH 120V 90A PWRDI5060-8
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: Automotive, AEC-Q101
In Stock:34125
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DMT12H007LPS-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 34125 pieces of DMT12H007LPS-13 in stock available now. Submit an inquiry for DMT12H007LPS-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)120 V
Current - Continuous Drain (Id) @ 25°C90A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs7.8mOhm @ 30A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs49 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3224 pF @ 60 V
FET Feature-
Power Dissipation (Max)2.9W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerDI5060-8
Package / Case8-PowerTDFN
