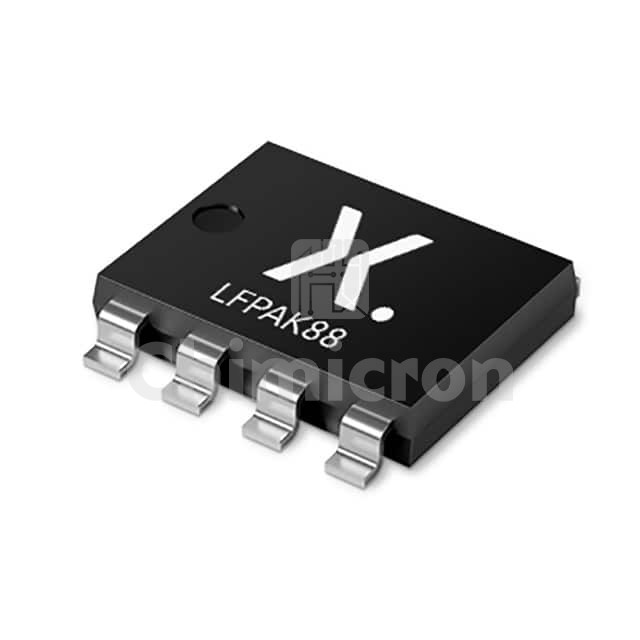

PSMN1R0-40SSHJ
Manufacturer: Nexperia
Description: MOSFET N-CH 40V 325A LFPAK88
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: -
In Stock:8649
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the PSMN1R0-40SSHJ Nexperia at chimicron.com. We have 8649 pieces of PSMN1R0-40SSHJ in stock available now. Submit an inquiry for PSMN1R0-40SSHJ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C325A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1mOhm @ 25A, 10V
Vgs(th) (Max) @ Id3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs137 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds10322 pF @ 25 V
FET FeatureSchottky Diode (Body)
Power Dissipation (Max)375W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK88 (SOT1235)
Package / CaseSOT-1235
