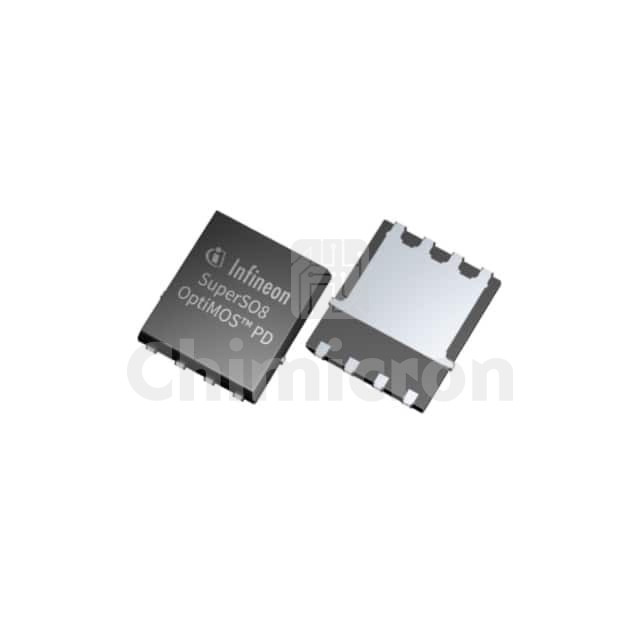

BSC074N15NS5ATMA1
BSC074N15NS5ATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 150V 114A TSON-8-3
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: OptiMOS™ 5
In Stock:300190
Get Instant Quote
orSend BOM
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BSC074N15NS5ATMA1 IR (Infineon Technologies) at chimicron.com. We have 300190 pieces of BSC074N15NS5ATMA1 in stock available now. Submit an inquiry for BSC074N15NS5ATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesOptiMOS™ 5
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C114A (Tc)
Drive Voltage (Max Rds On, Min Rds On)8V, 10V
Rds On (Max) @ Id, Vgs7.4mOhm @ 50A, 10V
Vgs(th) (Max) @ Id4.6V @ 136µA
Gate Charge (Qg) (Max) @ Vgs52 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4000 pF @ 75 V
FET Feature-
Power Dissipation (Max)214W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount, Wettable Flank
Supplier Device PackagePG-TSON-8-3
Package / Case8-PowerTDFN
