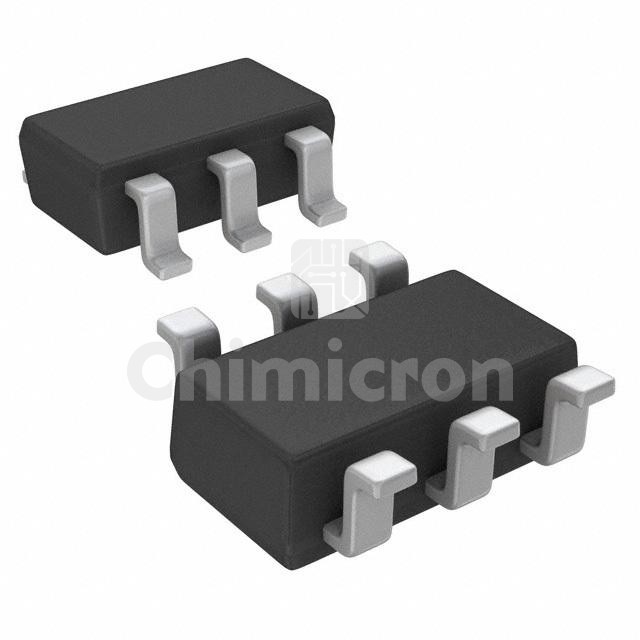

IRF5801TRPBF
Manufacturer: IR (Infineon Technologies)
Description: MOSFET N-CH 200V 600MA MICRO6
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: HEXFET®
In Stock:4946
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the IRF5801TRPBF IR (Infineon Technologies) at chimicron.com. We have 4946 pieces of IRF5801TRPBF in stock available now. Submit an inquiry for IRF5801TRPBF or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHEXFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C600mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs2.2Ohm @ 360mA, 10V
Vgs(th) (Max) @ Id5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.9 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds88 pF @ 25 V
FET Feature-
Power Dissipation (Max)2W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMicro6™(TSOP-6)
Package / CaseSOT-23-6 Thin, TSOT-23-6
