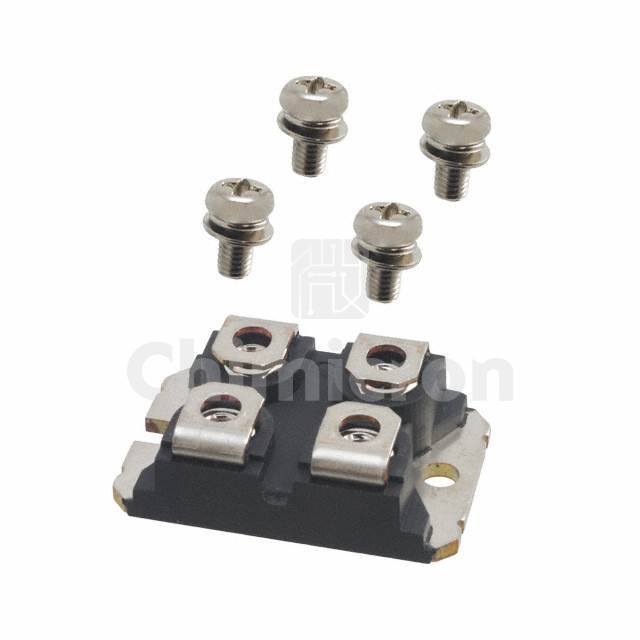

STE140NF20D
Manufacturer: STMicroelectronics
Description: MOSFET N-CH 200V 140A ISOTOP
Category : Discrete Semiconductor Products
Family: Transistors - FETs, MOSFETs - Single
Series: STripFET™ II
In Stock:40
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the STE140NF20D STMicroelectronics at chimicron.com. We have 40 pieces of STE140NF20D in stock available now. Submit an inquiry for STE140NF20D or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSTripFET™ II
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C140A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs12mOhm @ 70A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs338 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds11100 pF @ 25 V
FET Feature-
Power Dissipation (Max)500W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageISOTOP
Package / CaseSOT-227-4, miniBLOC
